Customizable IP5X IP6X Dustproof Test Chamber Sand Dust Test Chamber 1000L 220V 50Hz

Name: Customizable IP5X IP6X Dustproof Test Chamber Sand Dust Test Chamber 1000L 220V 50Hz
Brand: HBYIQI
Price: 1 USD

Buy cheap Customizable IP5X IP6X Dustproof Test Chamber Sand Dust Test Chamber 1000L 220V 50Hz product

Brand Name : HBYIQI

Model Number : HB-FC-IP56X-1000L

Certification : ISO-9001

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T

Delivery Time : 15days

Packaging Details : International Standard Package

Dustproof Level : IP5X、IP6X

Dust Type : Dry Talcum Powder

Dust Usage : 2 - 4kg/m³

Spray Method : Freefall

Vacuum Range : 0-10Kpa (Adjustable)

Air Extraction Speed : 0-4800L/H (Adjustable)

Contact Now

Brand: Hengbang Instrument HBYIQI

Equipment Name: IP56X Dustproof Test Chamber

This equipment meets the testing requirements or equivalent requirements of relevant standards:

IEC60529:2001 "Degrees of protection provided by enclosures(IP Code)";
GB4208 - 2017 "Degree of protection provided by enclosures (IP Code)";
GB7000.1 "Luminaires - Part 1: General requirements and tests".

Equipment Purpose

This equipment is applicable to conduct IP5X and IP6X dustproof grade tests for products. Its main function is to test the physical and other related properties of products such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated dust - laden climatic conditions. After the test, it is judged whether the product performance meets the requirements through inspection, which is convenient for product design, improvement, inspection and factory inspection.

Waterproof Grade of the Equipment Enclosure (IP Code)

Waterproof Grade of the Equipment Enclosure (IP Code)
Grade	Brief Description	Definition
IP5X	Dust - proof Enclosure	After the test, observe the deposition amount and location of talcum powder. If, like other dust, it is not sufficient to affect the normal operation or safety of the equipment, the test is considered qualified.
IP6X	Dust - proof Enclosure	After the test, if there is no obvious dust deposition inside the enclosure, the test is considered qualified.

Technical Parameters

Model	HB - FC - IP56X - 1000L (Small Size)
Equipment Function	Applicable for conducting IP5X and IP6X dustproof tests for products
Parameters	Inner Chamber Dimensions	Length 500 * Depth 500 * Height 500mm	Length 1000 * Depth 1000 * Height 1000mm
	External Dimensions	Length 950 * Depth 520 * Height 1530mm	Length 1450 * Depth 1220 * Height 2030mm
	Temperature Range	RT + 10~40℃ (Specify when ordering)
	Standard Wire Diameter of Metal Sieve	50um
	Standard Spacing Between Wires	75um
	Talcum Powder Consumption	2 - 4kg/m³
	Test Dust	Dry Talcum Powder
	Powder Spraying and Dust - Settling Method	Free Dust - Settling
	Total Test Time	0 - 999H (Adjustable)
	Vibration Time	0 - 999H (Adjustable)
	Timing Accuracy	±1 Second
	Vacuum Degree	0 - 10Kpa (Adjustable)
	Air Extraction Speed	0 - 4800L/H (Adjustable)
	Equipment Power Supply	220V, 50Hz
	Test Sample Power Supply	220V, 50Hz
	Equipment Power	1.5KW
	Safety Protection Function	Leakage Protection, Short - Circuit Protection

Equipment Display

Machine Shape:

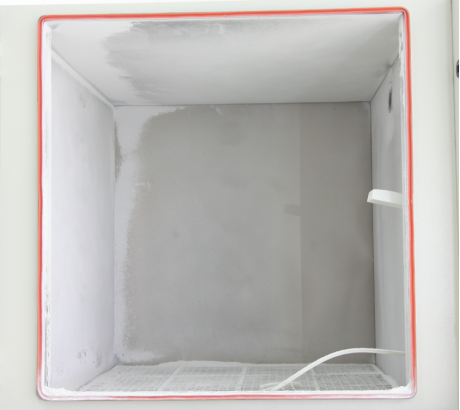

Inner Chamber:

Product Tags:

IP6X Dustproof Test Chamber

Customizable Sand Dust Test Chamber

Customizable IP5X IP6X Dustproof Test Chamber Sand Dust Test Chamber 1000L 220V 50Hz Images
